U1 Series
U1
Four-toolhead toolchanger

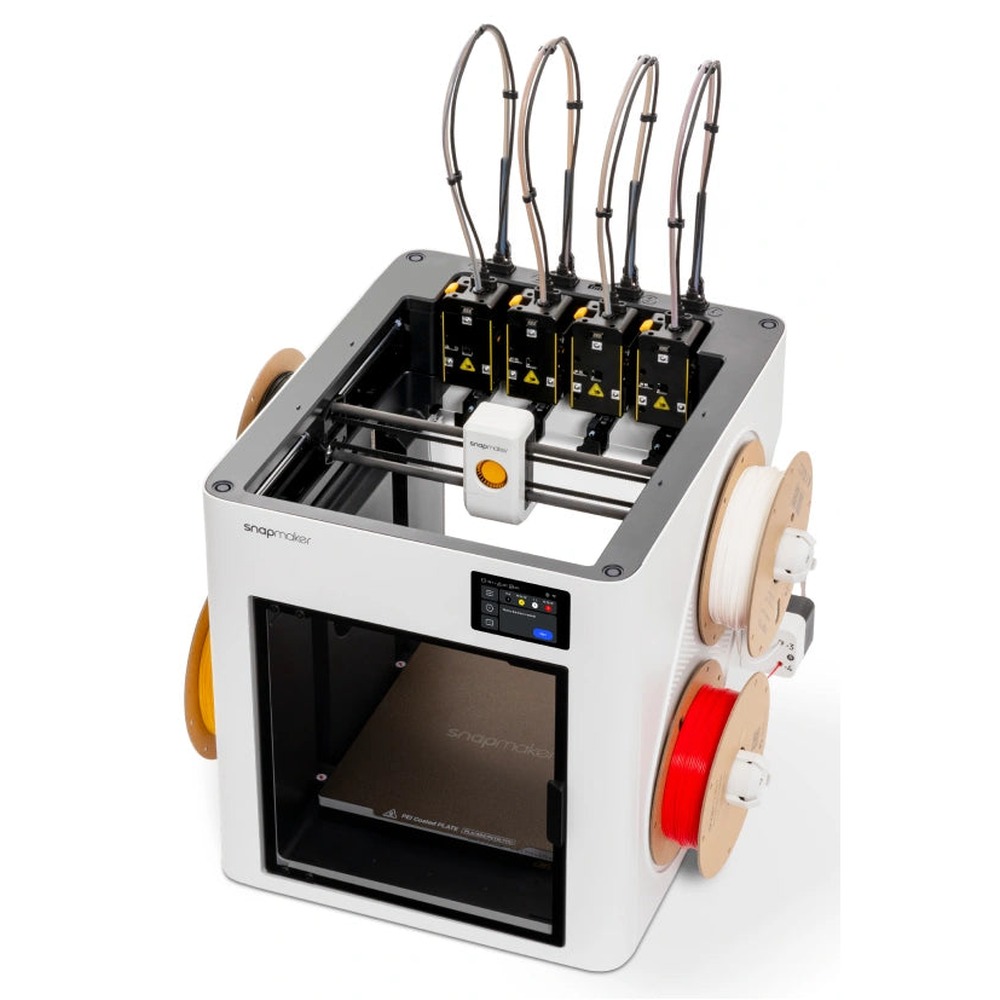

A multi-colour, multi-material CoreXY printer with a four-toolhead toolchanger. Each toolhead is preheated and independent, and swaps in about 5 seconds, so each colour or material stays loaded in its own nozzle instead of being purged through one.
Order-in — estimated 20–30 days
Pay online by card. Collect at TT3 (Vincenzo Labs) or Galacity / Saradise (TLC) — we email you when it is ready.
- Price includes SST
- Yes — no tax is added later
- Prices valid
- Until further notice
- Availability
- Order-in
- Lead time
- Estimated 20–30 days
- Pickup
- Free in Kuching — TT3 (Vincenzo) or Galacity / Saradise (TLC)
- Ordering
- Available now — pay by card
Lead times are estimates, not delivery promises. Prices include SST and are valid until further notice.
Ask about this product
Send a question and we will reply by email or phone — usually within one working day. No order or payment is created.
At a glance
Key highlights
4 toolheads, 5 s swaps
SnapSwap toolchanging swaps a complete toolhead in about 5 seconds.
270 mm cubed build volume
Room for large models and batch printing.
Up to 500 mm/s
Up to 20,000 mm/s2 acceleration on a CoreXY frame.
Up to 300 °C
Stainless steel 0.4 mm nozzle, 32 mm³/s maximum hotend flow.
Features
What makes this model different
Multi-colour and multi-material
Each colour or material stays loaded in its own toolhead.
Automatic calibration
Automatic calibration and mesh levelling for consistent prints.
Auto-feed and backup mode
RFID filament recognition, auto-feed, and a backup mode when a spool runs out.
AI camera monitoring
A 2MP camera with AI monitoring, and a 3.5-inch touchscreen.
High-temperature option
The optional top cover allows ABS, ASA, PA (nylon) and PC.
Specifications
Technical details
| Dimensions | 584 × 499 × 730 mm |
|---|---|
| Weight | 18.2 kg |
| Build volume | 270 × 270 × 270 mm |
| Enclosure | Partially enclosed; optional top cover for high-temperature materials |
| Motion system | CoreXY |
| Technology | FDM |
| Toolheads | 4 independent, preheated, SnapSwap (5-second tool changes) |
| Max speed | 500 mm/s |
| Max acceleration | 20,000 mm/s2 |
| Max nozzle temperature | 300 °C |
| Nozzle | Stainless steel, 0.4 mm |
| Max hotend flow | 32 mm3/s |
| Filament diameter | 1.75 mm |
| Cooling | Dual part cooling fans |
| Build plate | PEI spring steel, max bed temperature 100 °C |
| Materials (out of the box) | PLA, PETG, TPU, PVA, PCTG |
| Materials (with top cover) | ABS, ASA, PA (nylon), PC |
| Materials (hardened nozzle) | Carbon-fibre and glass-fibre reinforced polymers |
| Screen | 3.5-inch touchscreen |
| Camera | 2MP, with AI monitoring |
| Storage | 26 GB eMMC |
| Firmware | Klipper |
| Connectivity | Wi-Fi |
| Software | Snapmaker Orca slicer and Snapmaker App |
Figures from Snapmaker’s published U1 specification.

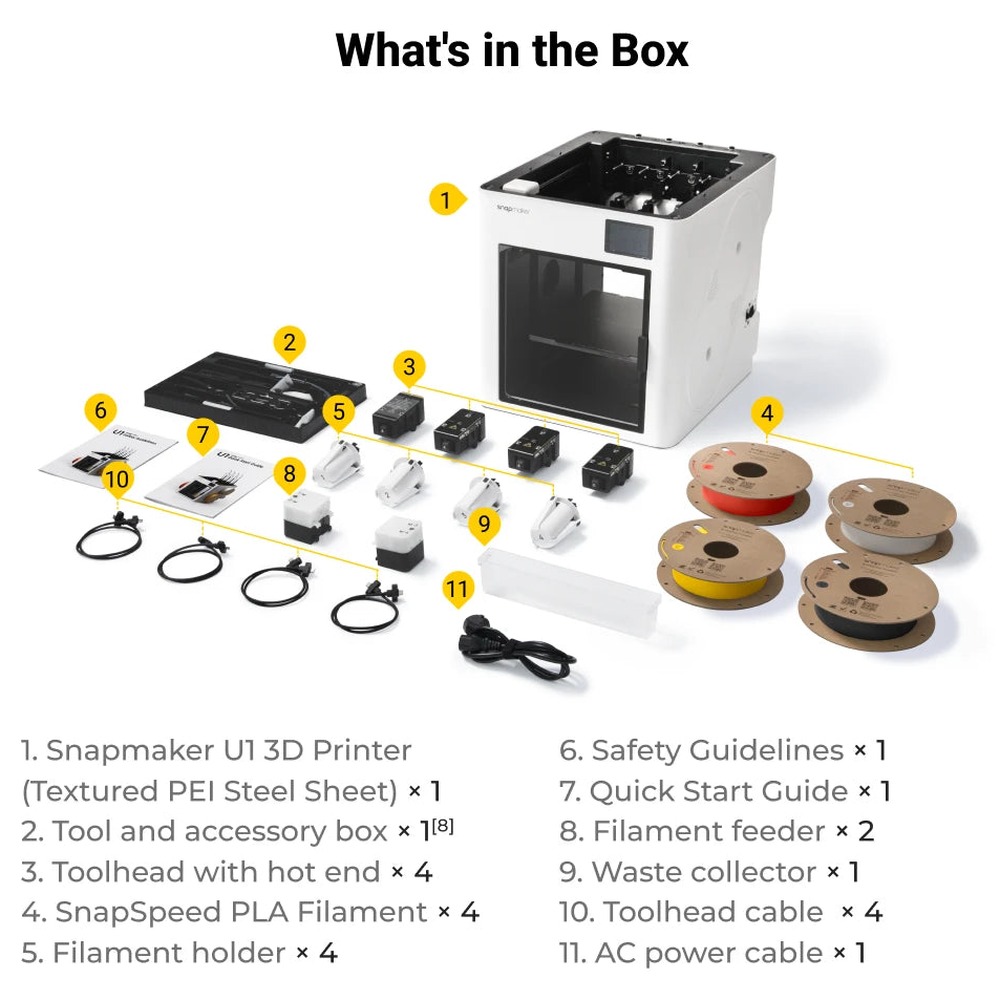

In the box
What's included
- U1 3D printer with textured PEI steel sheet
- Tool and accessory box
- 4 toolheads with hot end
- 4 SnapSpeed PLA filament spools
- 4 filament holders
- 4 toolhead cables
- 2 filament feeders
- 1 waste collector
- 1 AC power cable
- Safety guidelines and quick start guide
From Snapmaker’s in-the-box list.
FAQ
Questions about this model
- Is the RM price the same as Snapmaker’s online store?
- The U1 is shown at the offline retail price from the Snapmaker price list. Snapmaker’s online store lists it in other currencies and regions.
- When can I collect it?
- The U1 is order-in. Estimated lead time is 20–30 days, and collection is free at TT3 or Galacity.
Resources
Official documentation
Technical values come from Snapmaker's official documentation. Descriptions and guidance on this page are written by The Learning Collection. Image sources are recorded in our internal image manifest.
